Uri-Trak® 120M

Semi-automated urine analyzer

Pebble

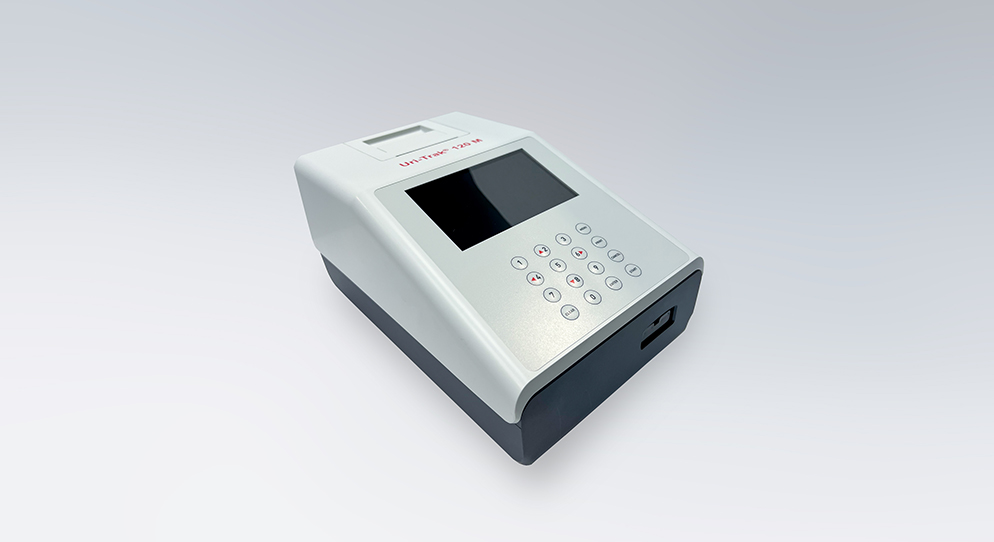

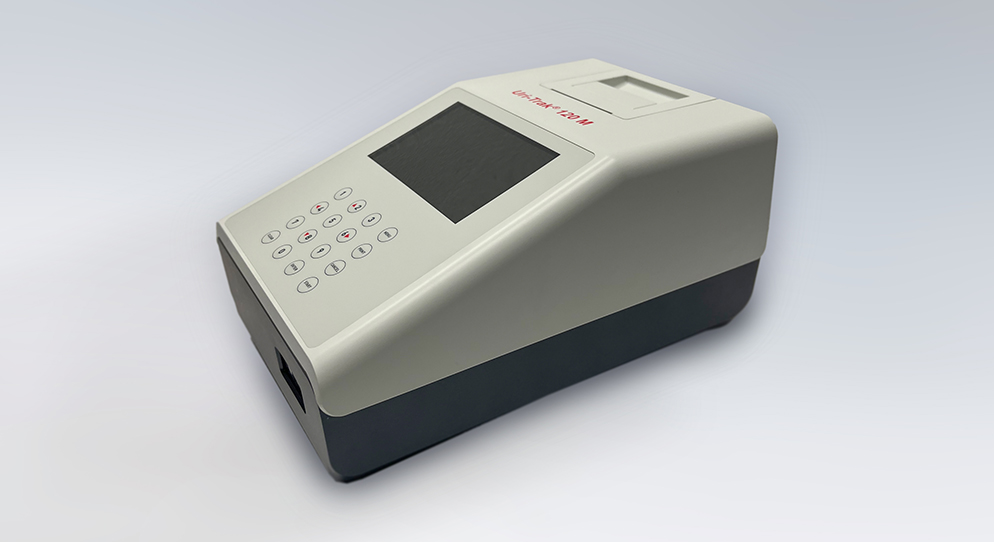

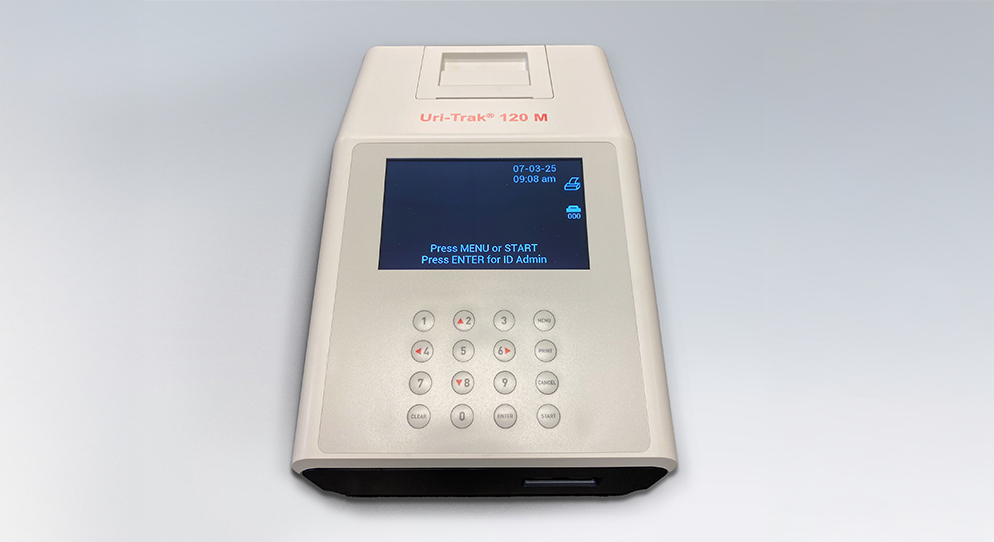

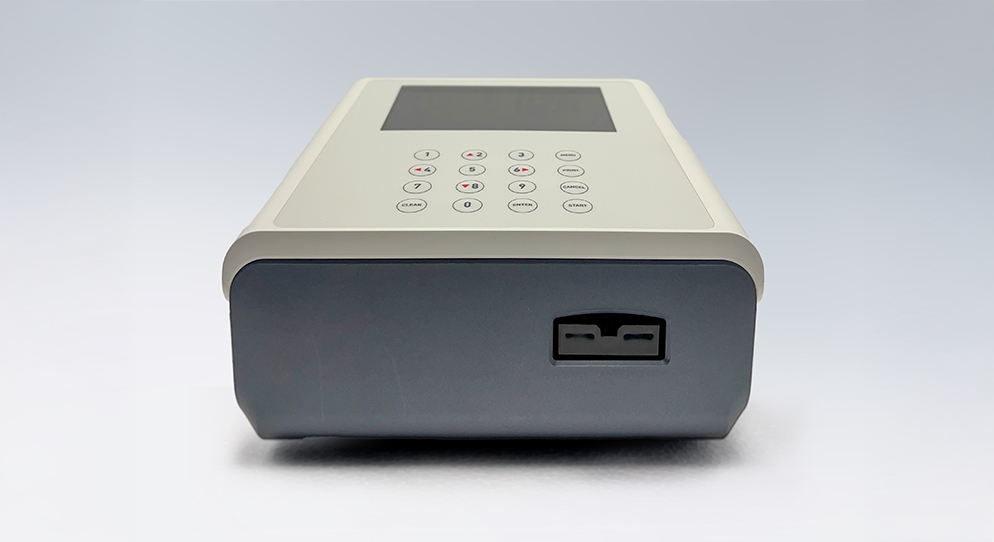

The Uri-Trak® 120M Urine Analyzer provides accuracy and consistency in urine chemistry testing.

Uri-Trak® 120M Urine Analyzer allows physician offices and laboratories the accuracy and consistency of advanced technology in urine chemistry testing.

The urine analyzer uses state-of-the-art electronics to accurately and efficiently read the Uri-Chek® 10SG urinalysis reagent strips.

The Uri-Trak® 120M Urine Analyzer uses reflective photometry to deliver up to 120 tests per hour reading Uri-Chek™ 10SG . Uri-Chek strips analyze ten common parameters including pH, leukocytes, nitrite, ketones, bilirubin and glucose.

High accuracy and consistency in urine chemistry testing

Key features:

  • Automated calibration before each test
  • Up to 120 tests per hour in Continuous Mode
  • Minimal training required
  • 510(k) Cleared and CLIA Waived
  • Data Management ready
  • Store up to 2000 results
Contact our specialists

Frequently Asked Questions:

What parameters can the Uri-Trak® 120M analyze?

User friendly operation

  • Semi-automatic operation with calibration before each test
  • 15 different test combinations per analyzer
  • Multiple language options: English, French, Italian, Portuguese and Spanish
  • High throughput
    – Single Test Option: 60 tests/hour
    – Continuous Test Option: 120 tests/hour
  • 510(k) Cleared and CIA Waived

Accurate results with well-established and proven technology

  • Uses Reflectance photometry with photosensitive diode detection at wavelengths of 525 nm and 635 nm
  • Just 1 minute for strip incubation time
  • Parameters available:
    – Glucose, Bilirubin, Ketone (Acetoacetic acid), Specific Gravity, pH, Blood, Protein, Urobilinogen, Leukocytes, Ascorbic Acid, Nitrite

Multiple data management options

  • Built in thermal printer or can connect and print to external printer
  • Data can transfer using either USB or RS232C options
  • Operator ID and Patient ID can be input either through manual entry or the optional RS232C Barcode Reader (up to 20 characters)
  • Memory can store up to 2000 results

Small footprint

  • Compact 275 mm (l) x 183 mm (w) x 139 mm (h) (10.8″ x 7.2″ x 5.5″)
  • Lightweight 1.85 kg (4.1 lbs) without batteries or power supply
Uri-Trak®120M: Datasheet
Download

Contact the EKF team to discuss your requirements
