HemataStat II™

Fast and efficient hematocrit sampling

Pebble

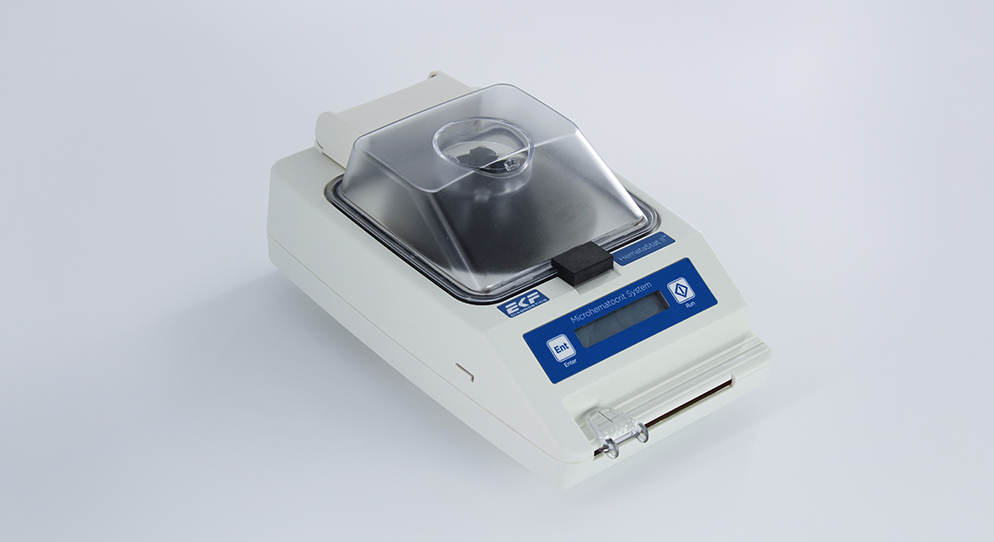

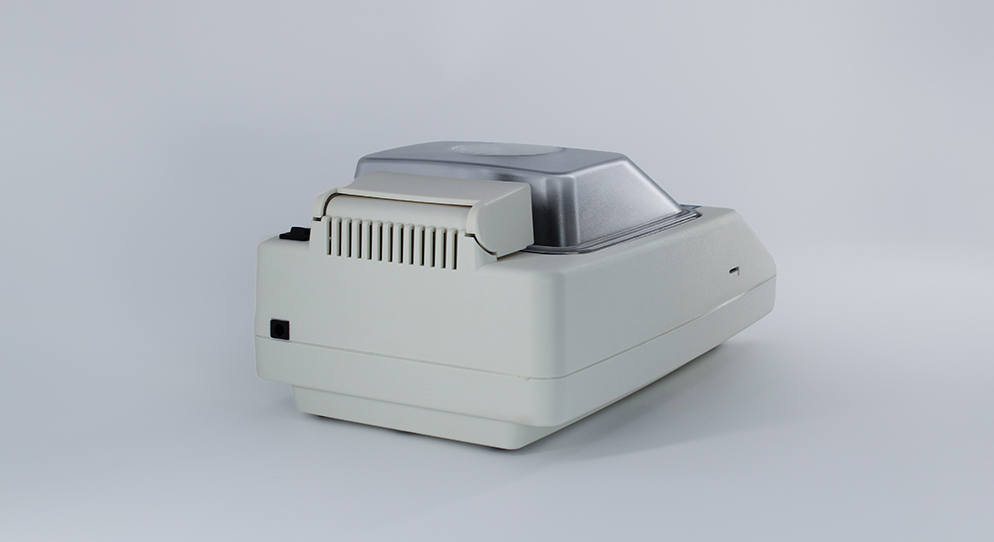

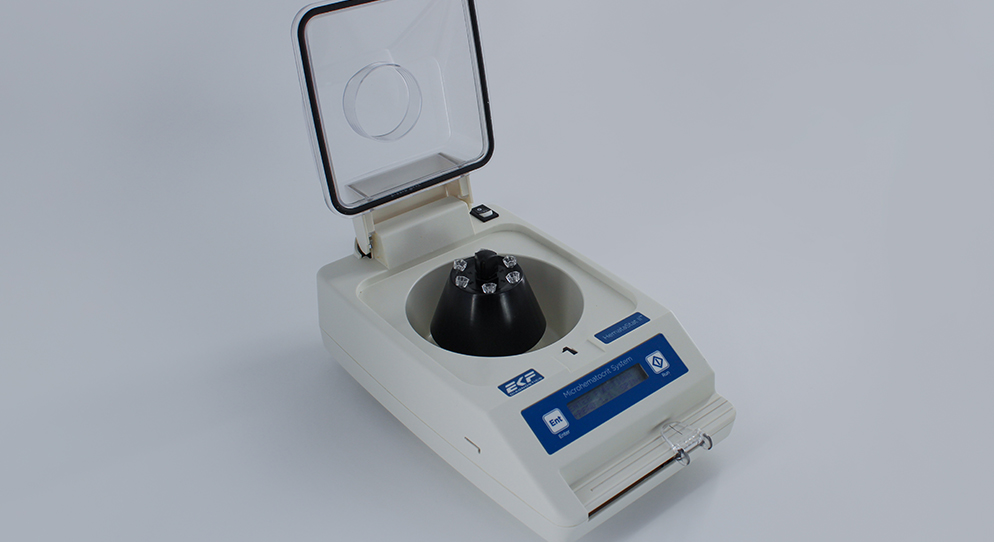

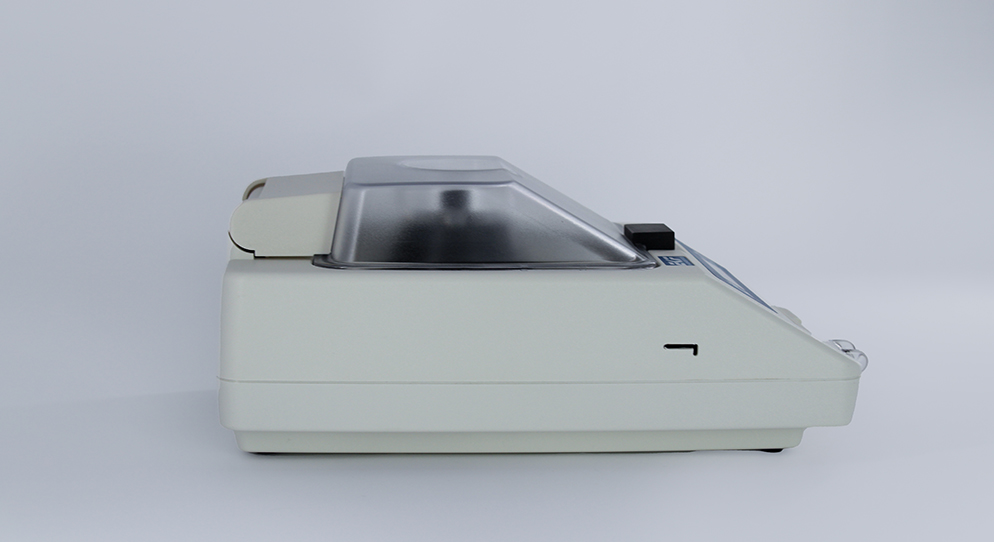

EKF Diagnostics’ HemataStat II™ is a microhematocrit centrifuge that provides a quantitative hematocrit reading for up to six blood samples from one 60-second spin.

Hematocrit is the volume percentage (%) of red blood cells in blood. The measurement is taken as the amount of red blood cells in relation to the amount of plasma from a spun capillary or venous sample.

HemataStat II™ is ideal for point-of-care and laboratory use in clinics and hospitals. Its compact size and the optional battery pack make it well-suited for outreach programs and veterinary settings. HemataStat II™ is used in 100% of the plasma collection centers in the USA as it allows a simple hematocrit measurement and further analysis of the plasma fraction for proteins. The multilingual display provides easy-to-follow instructions to ensure accurate results every time.

HemataStat II™ combines easy maintenance with a high degree of user safety. For example, heparinized ClearCrit® tubes are used to collect the blood sample and are available in plastic,  Mylar® wrapped glass, or self-sealing Mylar-wrapped glass. Two different diameter tubes are available for low and regular sample volumes.

The high-quality HemataSEAL® tube sealant seals both plastic and glass tubes equally well, eliminating leakages and blowouts and ensuring accurate and reliable results time after time.

Additional safety features include the high-quality HemataSEAL tube sealant. HemataSEAL eliminates leakages and blow-outs and ensures accurate and reliable results time after time.

Quickly measures hematocrit in any setting

Key features:

  • 60-second spin time
  • Built-in reader
  • Whisper-quiet operation
  • Optional rechargeable battery
  • Dimensions: 127 x 177 x 279mm
  • Lightweight: 2 lbs / 907 g
  • CLIA waived
Contact our specialists

Easy hematocrit measurement in three steps:

1
numbered_image_image.alt

Collect capillary blood sample

2
numbered_image_image.alt

Place the sealed tube into the centrifuge and spin for 60 seconds

3
numbered_image_image.alt

Results are displayed on screen

Frequently Asked Questions:

How accurate are the results from the HemataStat II™?
Can Samples from an EDTA tube be used?
Is HemataStat II™ affected by air bubbles?
What size I.D. (inside diameter) capillary tubes should I buy?
How many spins can be completed on a single battery charge?

Easy to use

  • CLIA waived
  • Step-by-step instructions on the display
  • Multi-lingual menu
  • Clear, disposable tube holders for safe and easy maintenance
  • Optional rechargeable battery pack for field use

Fast & Accurate

  • 60-second spin time
  • 5,670 – 6,390 RPM
  • Built-in low RPM alert
  • Accuracy +/- 0.5%
  • Compares to NCCLS reference method

Innovative technology

  • Whisper quiet operation
  • Six place rotor
  • Built-in tachometer
  • 1,548 – 2,312 RCF
  • Compact: 127 (h) x 177 (w) x 279 (d) mm /  5”(h) x 7”(w) x 11”(d)
  • Lightweight: 907 g / 2 lbs
HemataStat II™: Datasheet (RSS102.01 EN 04-2017)
Download

Contact the EKF team to discuss your requirements
